사업분야
- Product Line up
- Canned Pump
산업용모터
제품특성

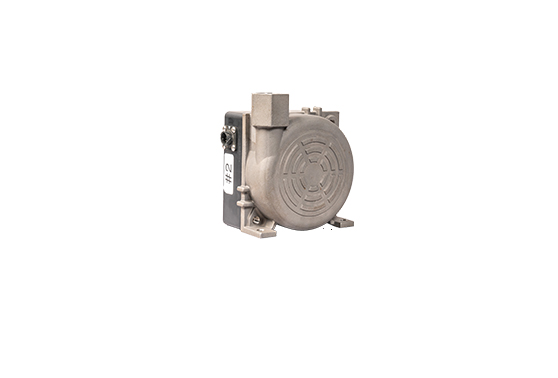

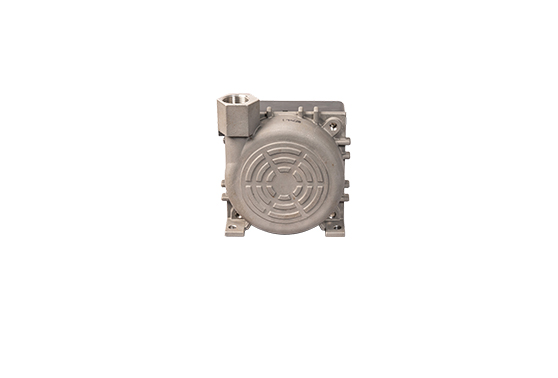

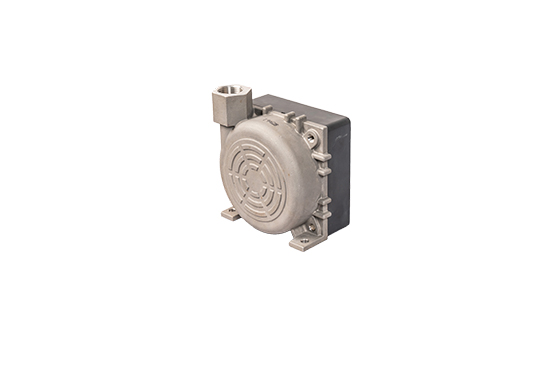

Canned Pump
Axial motor 구조를 적용하여 컴팩트한 칠러용 펌프
적용분야
- 온도 조절기
- 칠러 냉각기
- 순환용
| P.M MOTOR | PUMP | Ambient Temp. |
Dimension (mm) (W*D*T) |
Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Out |
Rated Voltage |
Current | Control Type |
RPM | Suction Discharge Size |
Head | Max. Flowrate |
Specific Gravity Water |
|||
| 1.1kw | Φ3/220v | 4.4A | Inverter | 5,850 | Φ20*20mm | 0.4Mpa | 60Ipm | 1.0 | -20~90℃ | 120*120*85.5T | 4Kg |
| P.M MOTOR | ||||
|---|---|---|---|---|
| Rated Out |
Rated Voltage |
Current | Control Type |
RPM |
| 1.1kw | Φ3/220v | 4.4A | Inverter | 5,850 |
| PUMP | |||
|---|---|---|---|
| Suction Discharge Size |
Head | Max. Flowrate |
Specific Gravity Water |
| Φ20*20mm | 0.4Mpa | 60Ipm | 1.0 |
| Ambient Temp. |
Dimension (mm) (W*D*T) |
Weight |
|---|---|---|
| -20~90℃ | 120*120*85.5T | 4Kg |
